Opal Street Sewer Reconstruction

Opal Street Sewer ReconstructionReconstruction of 430 feet of Opal Street in North Philadelphia required replacing an aging 18″ diameter sanitary sewer.  Helical piles were selected over driven timber piles due to the adjacent vibration sensitive structures, utilities, and very tight construction area.  Opal Street is only 30′ wide (house to house line) including a 14′ cart way and two 8′ sidewalks.

Project Summary:

  • Helical Pile Type: 3.5″ Pipe Pile
  • # Helical Piles: 55
  • Location: Philadelphia, PA
  • Installation Depth: 12′ – 17′

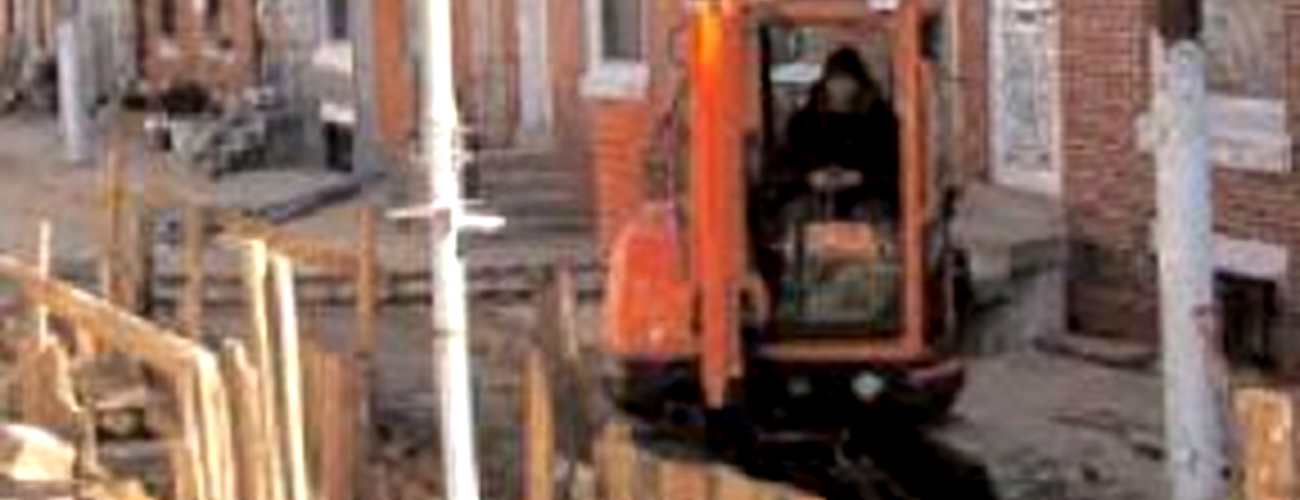

  • Equipment Used: Installation of the vibration-free piles were completed using a mini excavator.
  • Challenge/Unique Aspect: vibration sensitive structures, tight construction area (Opal St was only 30′ wide) and small low impact installation equipment influenced the decision to use helicals.
  • Engineer/Architect: Philadelphia Water Department
  • General Contractor: Commissioned by Philadelphia Water Department
  • Certified Installer: South Jersey Helical Piers
