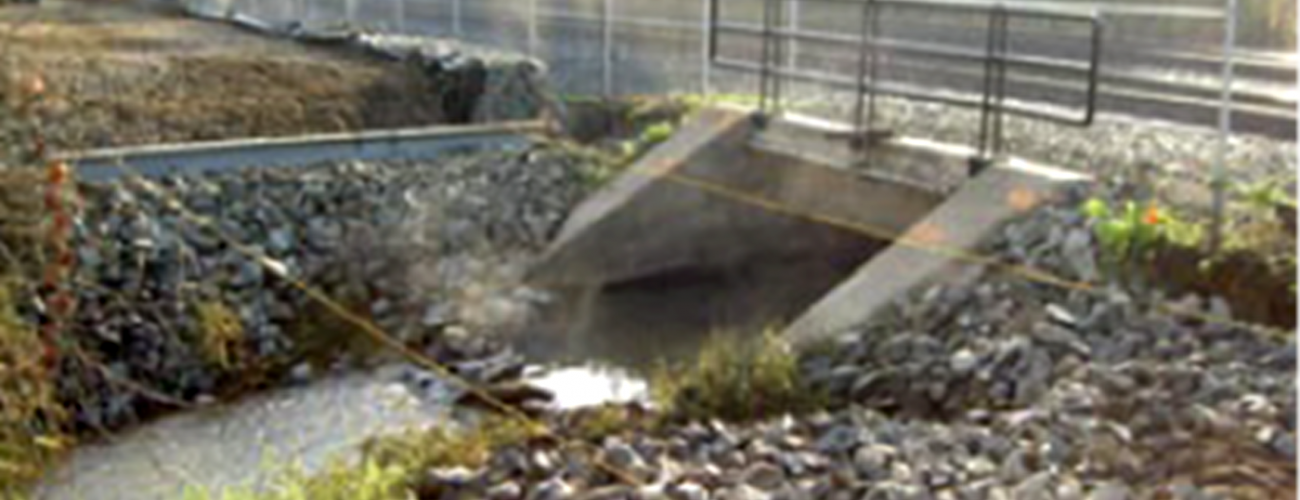

NJ Transit Bridge

NJ transit bridgeDue to the construction of a new “Light Rail System” by NJ Transit, Interstate Storage & Pipeline (a major jet fuel supplier) had to create an alternate route to their pump house.  The Castle Group was retained to design and construct a pre-fabricated bridge.

Project Summary:

  • Helical Pile Type: RS3500
  • # of Helical Piles: 8 per abutment
  • Location: Riverside, NJ
  • Installation Depth: 25′
  • Challenge/Unique Aspect: Underground gas lines, overhead power lines, fiber optics, NJ Transit restrictions, and a steep slope on the embankments greatly restricted the project.
  • Engineer/Architect: W.J. Castle & Associates
  • General Contractor: W.J. Castle & Associates
