Kinder Morgan Gateway Project


Date: 06/2014

Duration: 5 Days

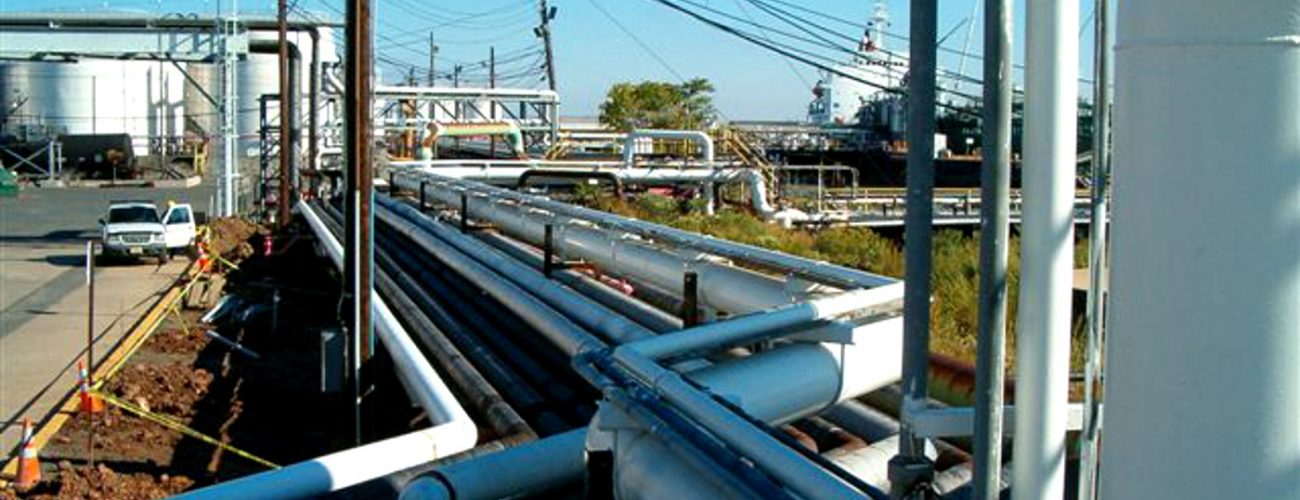

This chemical facility uses large diameter piping systems to transfer its product from tanks and buildings. Supporting these heavy pipes is an issue with the FILL and soft layers that exist close to the surface. No vibrations and small confinement is an issue at the facility. Helical piles solve these issues.

Project Summary:

  • Helical Pile Type: 3.5” Material
  • # of Helical Piles: 39
  • Location: Carteret, NJ 07008
  • Installation Depth: 35 Feet
  • Equipment Used: Cat 320 Excavator
  • Challenge/Unique Aspect: Vibration and small confinement
  • Design Engineer:River Consulting
  • Geotechnical Engineer: French & Parrello Associates
  • General Contractor: Simpson and Brown
